Standard Garage Door Jamb Bracket | Heavy-Duty Track Support – Model WT-T50018
Jamb-mounted bracket designed to anchor vertical tracks securely, maintaining alignment under operational load.

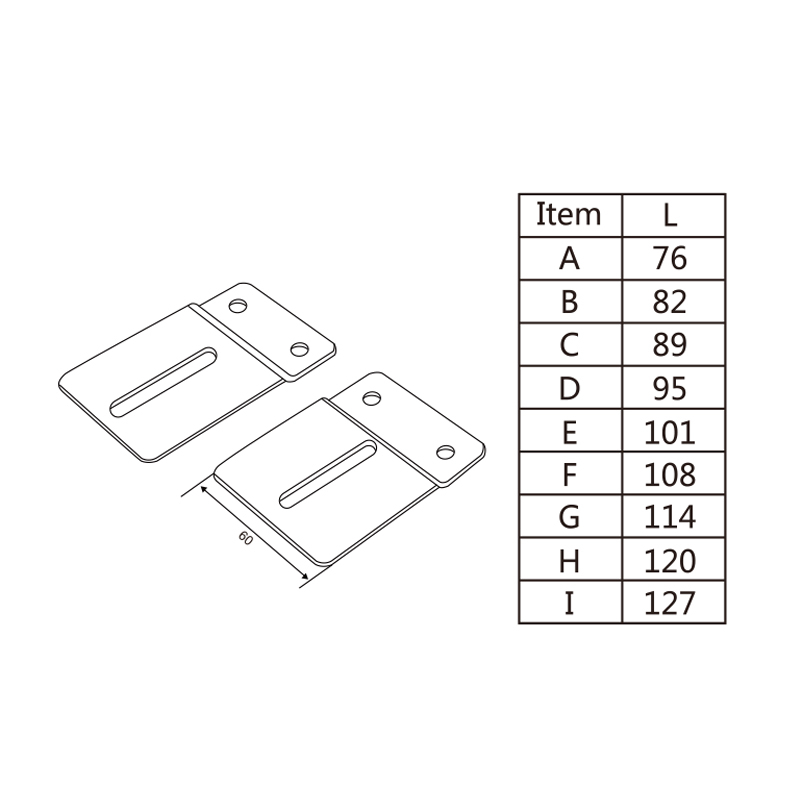

WT-T50018 — Jamb Bracket (Set B)
· Material:5mm galvanized steel· Length series (mm):A76/B82/C89/D95/E101/F108/G114/H120/I127
OEM / ODMISO 9001:2015In-house tooling
Manufacturing
Made to verified specs.
This part is produced under the same material, tolerance, and finishing standards as the rest of the range.
Raw materials
Q235 / Q35545# · 65Mn · ASTM A229
Stamping thickness
0.8–5.0 mmSheet & plate forming
Tolerance
±0.10–0.30 mmTight, repeatable
Surface finishing
Zinc / HDGPowder & e-coating
Salt-spray test
96–240 hrsCorrosion resistance
Pass rate
99%+Quality controlled
MOQ
100 pcsPer item
Production
OEM / ODMBuild to drawing
Because tooling is made in-house, material, gauge, and dimensions can be matched to your drawing or sample.
